AR Slicer

A Tool To Generate Poche Of An Architecture

Xinyi Chen
MArch II 2025
Emily Ruizhe Yuan
MArch II 2025
Ziyang Dong
MArch I 2025

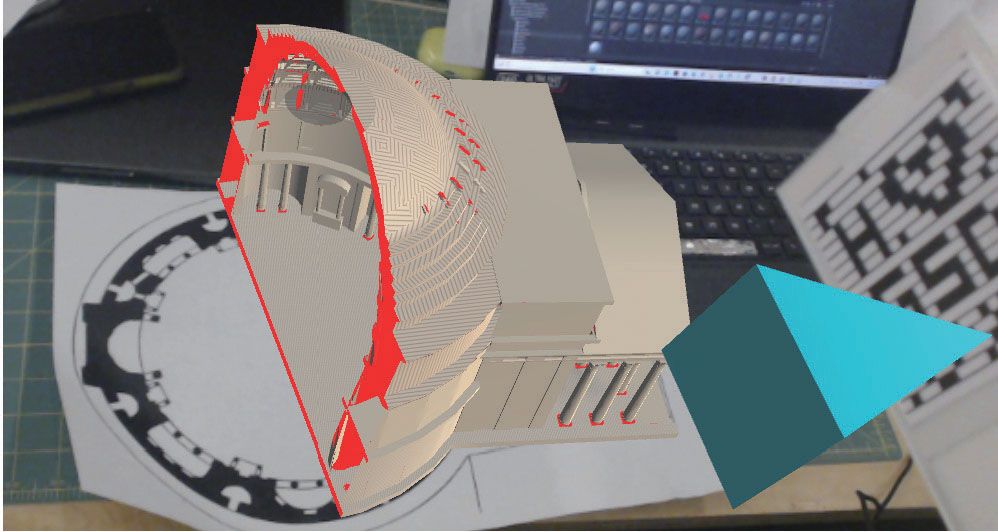

1 Slicing Section

We generate the AR model by Unity and Vuforia.By using AR technology, we show the building from a full perspective.By adding an AR clipping plane, the real-time sectioning of the building could be generated, which allows us to observe the section of the building from every angle and every part of the building.

This project is designed as a tool to observe spatial effects and section relationships within a building.

Project video

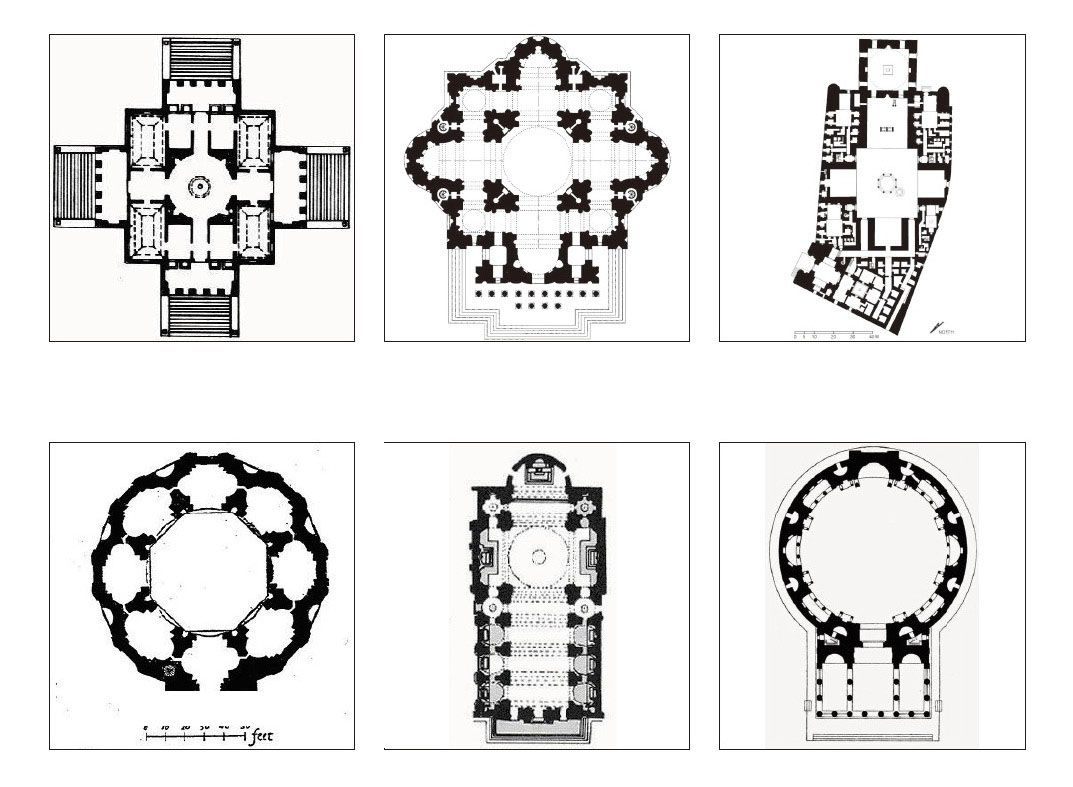

2 Idea of Poche

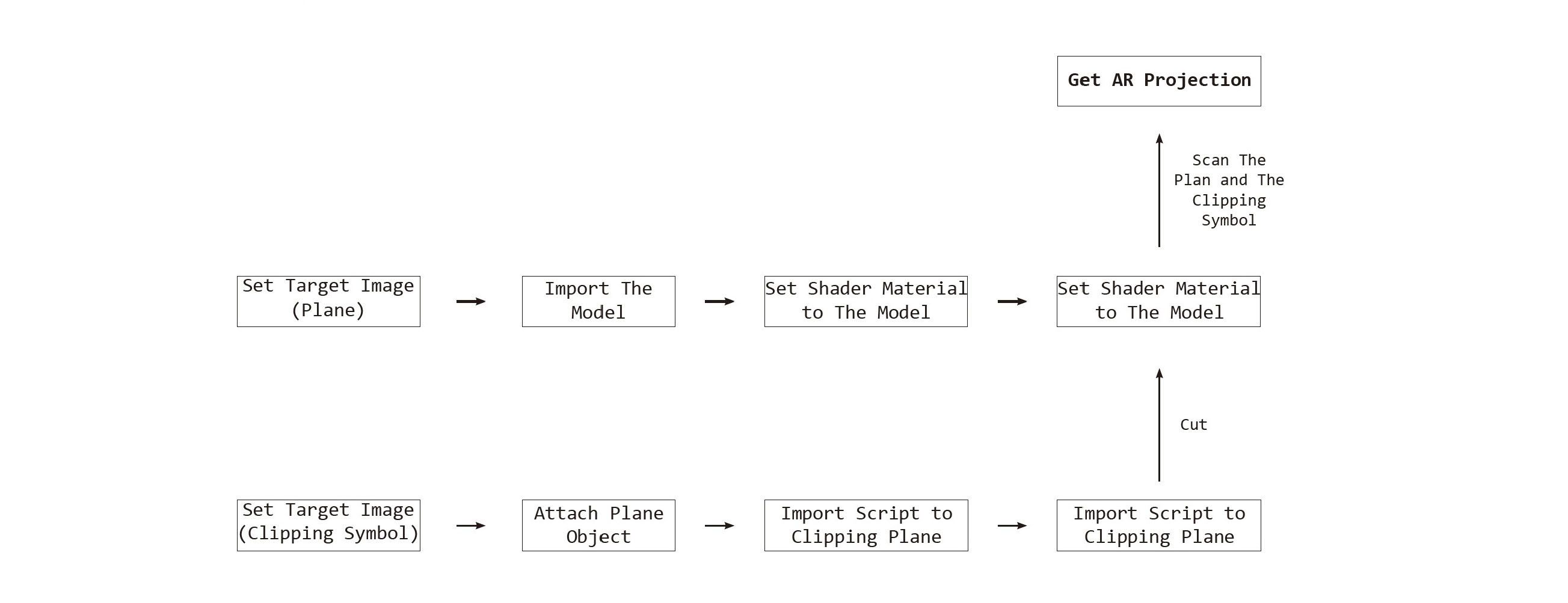

3 Workflow
