Up, Down, Around

Non-planar 3D Printing Applications

Jimi Adeseun
MArch II 2025
Thomas Delahouliere
MArch I 2024
Brian Zug
MArch I 2024
1 Lamp shade printed with transparent green PLA.

Our project furthers the investigation we started last assignment into non-planar 3D printing. We expanded our geometric inputs, improved our script to create smoother output toolpaths, and wrote created new analytical tools. We also experimented with a new target product: lampshades. New constraints provided new opportunities, and the light from inside our prints beautifully emphasizes the non-linear toolpaths. We experimented with uploading our scripts to ShapeDiver in order to take advantage of their UI, but ultimately decided that our project is best left as a tool for designers.

Project video

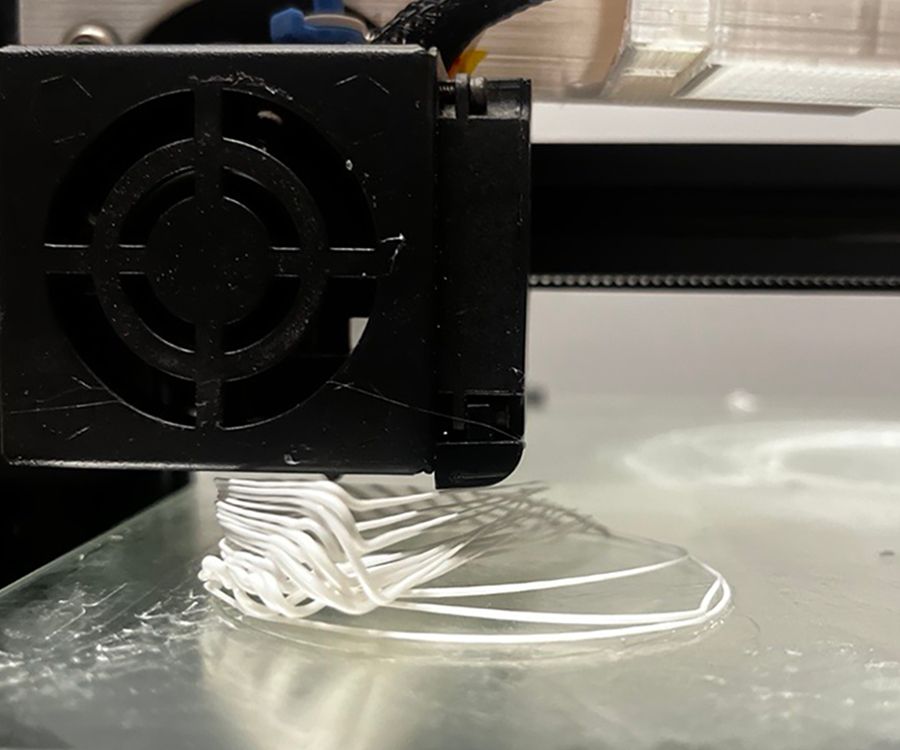

2 An extrusion modulation test print.

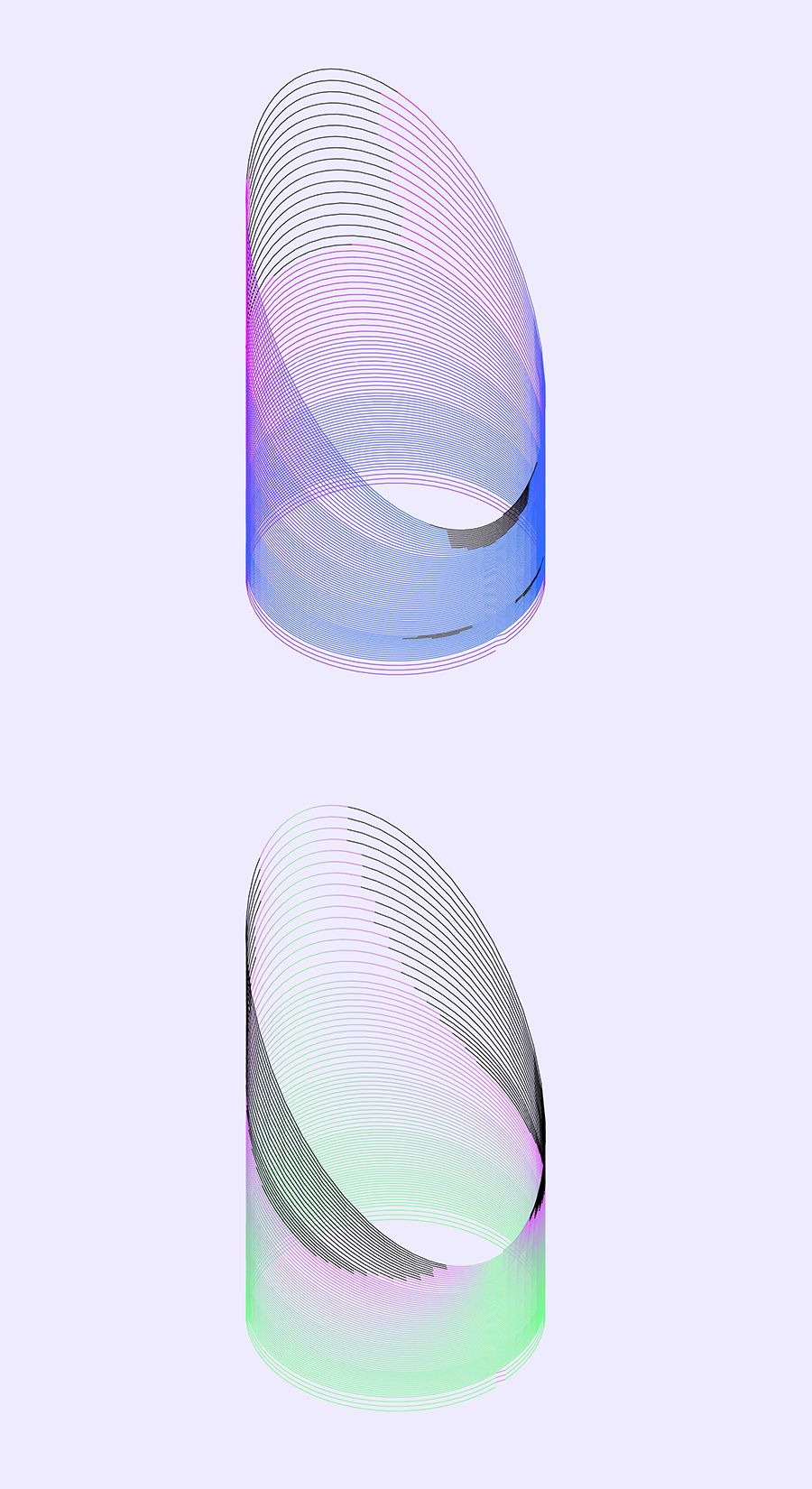

3 Results of pitch (top) and steepness (bottom) analyses.

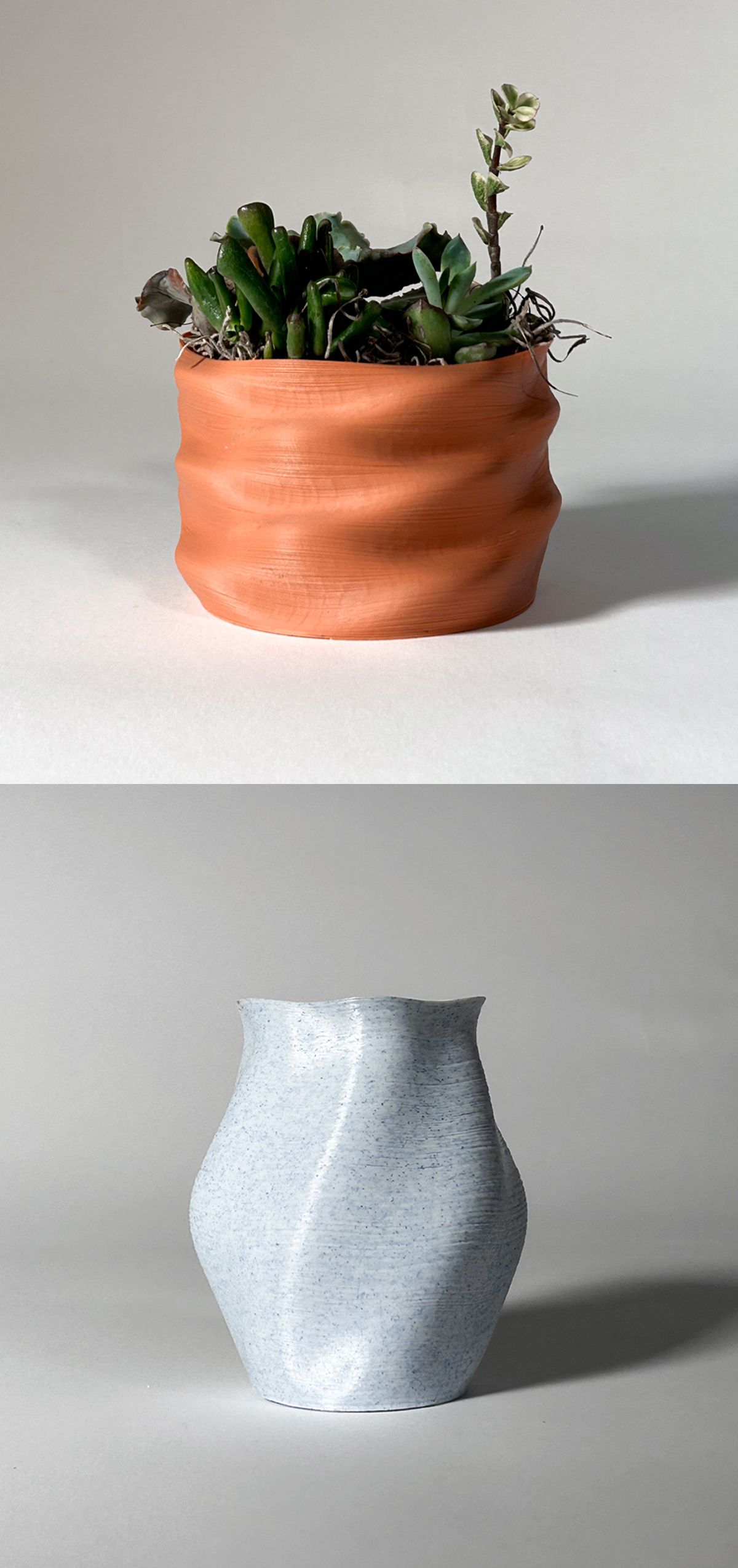

4 Succulent pot and small water vessel.
